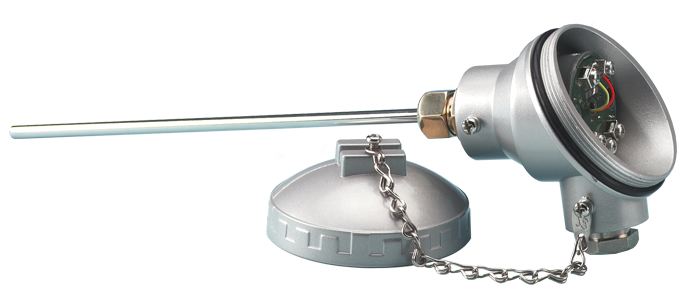

Thermocouple with Standard Head and 4-20mA Transmitter
These semi rigid thermocouples are ideal for all applications from simple temperature measurement to more arduous environments. A 4-20 mA transmitter is incorporated into
the standard head so that you may extend the sensor with standard copper instrument cable into your loop system. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A range of instrument cable and adjustable compression fittings can be found in this catalogue to complement this product.
- Thermocouple types K, T, or J available
- Sheath Material:
Type K - 321 Stainless Steel or 310 Stainless Steel (0 to 1200°C but sensor rated to 1100°C)
Type T, J - 321 Stainless Steel
Type N - Nicrotherm DTM
- The operating range of these sensors is shown in the order code boxes
- Terminated in an IP67 standard weatherproof head rated to 135ºC with head mounted 4-20 mA transmitter
- The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
