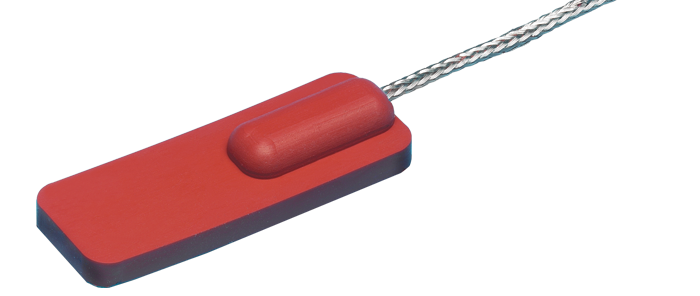

Rugged Self Adhesive Patch Thermocouple

Rugged Self Adhesive Patch Thermocouple view larger image
This rugged sensor incorporates a silicon rubber patch with a thermocouple junction embedded within, attached to 2 metre long PFA leads with stainless steel braided leads. The patch is self adhesive and when placed in position enables good response times from the flush mounted thermocouple junction.
  • Thermocouple types K, T, J and N available
  • Rubber Patch dimensions: 40mm x 14 mm x 7 mm maximum depth
  • Sensor housing: Silicon rubber with self adhesive backing
  • Operating range: -50°C to +150°C
  • Leads: 2 metres PFA insulated, stainless steel braided
The following types are available:

Rugged Self Adhesive Patch Thermocouple

Order Code Description 1 - 4 5 - 9 10+ Buy
602-905 Type K $72.00 $65.00 $59.00 Add
602-908 Type T $72.00 $65.00 $59.00 Add
602-911 Type J $72.00 $65.00 $59.00 Add
602-914 Type N $72.00 $65.00 $59.00 Add
