Embedded Brake Pad Thermocouple

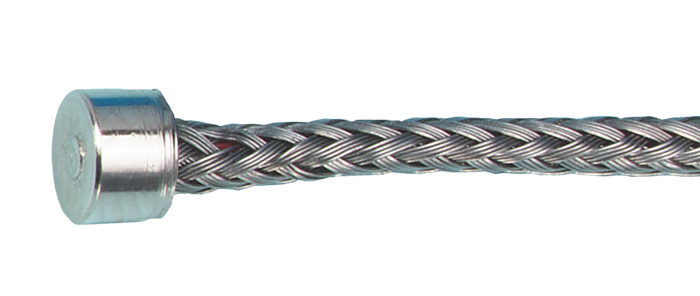

Embedded Brake Pad Thermocouple view larger image
These sensors are designed for embedding in to a brake pad to monitor fluctuations in the brake pad temperature up to a maximum of 800°C. Available in a choice of diameters and supplied with 1 mtr stainless steel braided cable.
  • Designed for monitoring brake pad temperatures up to 250°C, 600°C or 600°C
  • Thermocouple Type K (Types J and T also available)
  • Insulated measuring junction (250ºC version) or grounded (600ºC and 800ºC version)
  • 3.2, 4.0 and 6.0mm diameter tip x 4.0mm long
  • 1mtr fibreglass insulated with stainless steel overbraid
The following types are available:

Embedded Brake Pad Thermocouple - 250°C rated (insulated)

Order Code Description 1 - 9 10 - 24 25+ Buy
601-630 Type K - 3.2mm dia x 4mm long $51.00 $46.40 $42.60 Add
601-634 Type K - 4.0mm dia x 4mm long $53.00 $47.70 $43.60 Add
601-638 Type K - 6.0mm dia x 4mm long $56.00 $49.70 $45.50 Add
601-650 Type J - 3.2mm dia x 4mm long $51.00 $46.40 $42.60 Add
601-654 Type J - 4.0mm dia x 4mm long $53.00 $47.70 $43.60 Add
601-658 Type J - 6.0mm dia x 4mm long $56.00 $49.70 $45.50 Add

Embedded Brake Pad Thermocouple - 600°C rated (grounded)

Order Code Description 1 - 9 10 - 24 25+ Buy
601-640 Type K - 3.2mm dia x 4mm long $51.00 $46.40 $42.60 Add
601-644 Type K - 4.0mm dia x 4mm long $53.00 $47.70 $43.60 Add
601-648 Type K - 6.0mm dia x 4mm long $56.00 $49.70 $45.50 Add

High Temperature Embedded Brake Pad Thermocouple - 800°C Rated (grounded)

Order Code Description 1 - 9 10 - 24 25+ Buy
601-670 Type K - 3.2mm dia x 4mm long $65.00 $60.00 $55.00 Add
601-674 Type K - 4.0mm dia x 4mm long $67.00 $61.00 $57.00 Add
601-678 Type K - 6.0mm dia x 4mm long $71.00 $65.00 $59.00 Add
