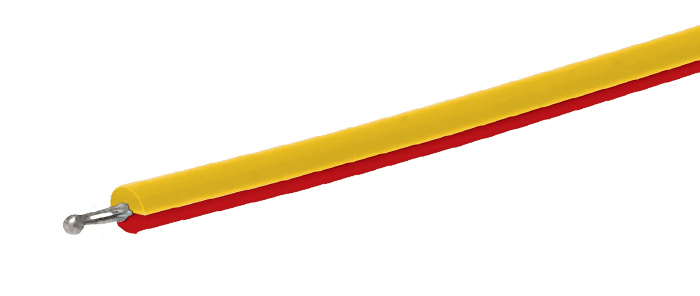

Welded Tip ‘Gas and Water Tight’ PTFE Thermocouple (Single Shot Construction)

A very fast response PTFE insulated thermocouple, made from a unique single shot cable construction which provides a gas, steam and water tight insulation along the cable. This sensor is ideally suited to temperature monitoring of test pieces in autoclave and aerospace applications. Available with or without a miniature thermocouple plug attached in 2 or 5 metre lengths.

Thermocouple types K, T, J
0.376mm dia solid PTFE insulated single shot construction
Lead length: 2 metres or 5 metres
Operating range: -75°C to +250°C
ANSI colour coded

The following types are available:

Single Shot PTFE Thermocouple without Miniature Plug
Single Shot PTFE Thermocouple with Miniature Plug

Single Shot PTFE Thermocouple without Miniature Plug

Order Code	Description	1 - 19	20 - 50	51 - 100	Buy
610-205	Type K - 2 metres	$54.00	$45.90	$41.60	Add
610-210	Type K - 5 metres	$75.00	$67.00	$62.00	Add
610-215	Type T - 2 metres	$51.00	$43.20	$38.80	Add
610-220	Type T - 5 metres	$73.00	$63.00	$59.00	Add
610-225	Type J - 2 metres	$51.00	$43.20	$38.80	Add
610-230	Type J - 5 metres	$73.00	$63.00	$59.00	Add

Single Shot PTFE Thermocouple with Miniature Plug

Order Code	Description	1 - 19	20 - 50	51 - 100	Buy
610-245	Type K - 2 metres	$70.00	$61.00	$55.00	Add
610-250	Type K - 5 metres	$89.00	$80.00	$75.00	Add
610-255	Type T - 2 metres	$67.00	$59.00	$52.00	Add
610-260	Type T - 5 metres	$89.00	$77.00	$72.00	Add
610-265	Type J - 2 metres	$67.00	$59.00	$52.00	Add
610-270	Type J - 5 metres	$89.00	$77.00	$72.00	Add
