Plastic Melt Thermocouple

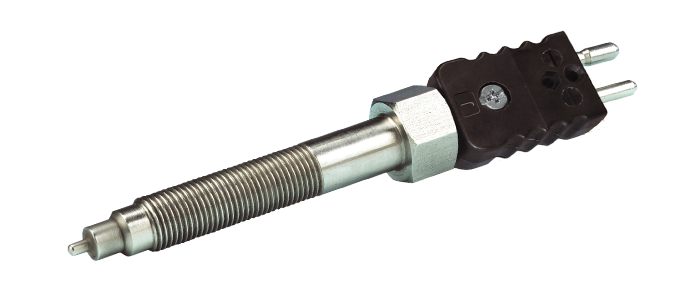

Plastic Melt Thermocouple view larger image
These robust sensors have been designed to withstand the high pressures that are found within the nozzles of plastics extruders and injection moulding machines where they are used in order to measure the temperature of the molten medium. Available as standard in either 76mm or 152mm bolt lengths with either a 5mm long or flush sensing tip length, they have an insulated junction and are terminated in a standard round pin thermocouple plug.
  • Thermocouple types K and J available
  • 76mm or 152mm bolt lengths available
  • Bolt thread: 1/2 inch UNF 20, material: 316L stainless steel
  • Sensing tip diameter: 3mm
  • Sensing tip length: Either 5mm or 0mm (flush)
  • Bolt termination: Standard round pin thermocouple connector
  • Insulated sensing junction
  • Operating temperature: 0°C to 600°C at tip
The following types are available:

Plastic Melt Thermocouple

Order Code Description 1 - 4 5 - 9 10+ Buy
601-400 Type K - 76mm bolt length - 5mm tip $119.00 $109.00 $100.00 Add
601-403 Type K - 76mm bolt length - Flush tip $119.00 $109.00 $100.00 Add
601-406 Type K - 152mm bolt length -5mm tip $126.00 $116.00 $105.00 Add
601-409 Type K - 152mm bolt length - Flush tip $126.00 $116.00 $105.00 Add
601-412 Type J - 76mm bolt length - 5mm tip $119.00 $109.00 $100.00 Add
601-415 Type J - 76mm bolt length - Flush tip $119.00 $109.00 $100.00 Add
601-418 Type J - 152mm bolt length - 5mm tip $126.00 $116.00 $105.00 Add
601-421 Type J - 152mm bolt length - Flush tip $126.00 $116.00 $105.00 Add
