Industrial Vacuum Furnace Thermocouple
These thermocouples are used in industrial vacuum furnaces up to at least 5 x 10-
6 torr (6.67 x 10-
6 mbar) where temperature up to 1600°C are experienced with a typical leak rate for better than or equal to 1 x 10-
6 scc/sec. under 1 Atm. He @ 20ºC. (1 Atm. = 1.013 x 10

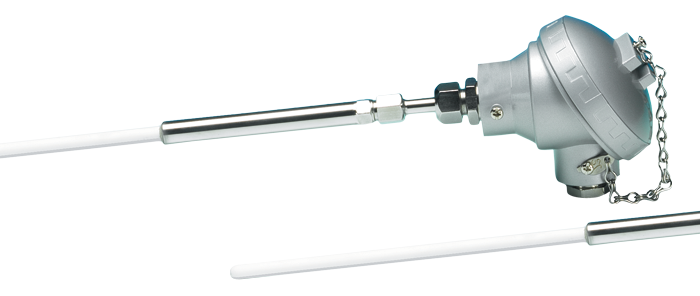

4 Pa or 1013 mbar). Available in thermocouple types K and N with an impervious aluminous porcelain sheath or thermocouple types R and S with an impervious recrystallised alumina sheath, they have a stainless steel support tube attached to a weatherproof connection head. The sensor can then be inserted into the application with a vacuum tight sealing assembly (ref 940-161) which can be purchased separately. Please see the sealing assembly section in this catalogue for more detailed specifications of the sealing assemblies. Whilst we offer a standard range of vacuum furnace thermocouples, due to the specialist nature of these sensors a full custom built service is available for both end users and OEM's.
- Thermocouple types K, N, R or S available
- Suitable to at least a vacuum of 1 x 10-6 mbar when used with a sealing assembly (see 940-161 above, other sealant types are available)
- Ceramic sheath material:
Type K and N, Impervious aluminous porcelain rated to 1350°C
Type R and S, Impervious recrystallised alumina rated to 1600°C
- Ceramic sheath diameter 8mm
- Support tube
12.7mm OD x 200mm long for 600mm and 1000mm total lengths
12.7mm OD x 300mm long for 1200mm total lengths
NB. These lengths are included in the total length
- Terminated in an IP67 weatherproof die cast alloy head rated to 135°C
- Suitable for use with a 3/4" sealing assembly 940-161 which is fitted onto the support tube
Note: Due to the fluctuating market price of platinum, prices may vary from time to time.
Please contact us for an up to date position.
The following types are available:
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 409-702 |
Type K - 600mm long |
$463.00 |
$420.00 |
$386.00 |
Add
|
| 409-705 |
Type K - 1000mm long |
$475.00 |
$434.00 |
$397.00 |
Add
|
| 409-708 |
Type K - 1200mm long |
$489.00 |
$446.00 |
$409.00 |
Add
|
| 409-711 |
Type N - 600mm long |
$463.00 |
$420.00 |
$386.00 |
Add
|
| 409-714 |
Type N - 1000mm long |
$475.00 |
$434.00 |
$397.00 |
Add
|
| 409-717 |
Type N - 1200mm long |
$489.00 |
$446.00 |
$409.00 |
Add
|
| 409-720 |
Type R - 600mm long |
$1,814.00 |
$1,654.00 |
$1,513.00 |
Add
|
| 409-723 |
Type R - 1000mm long |
$2,818.00 |
$2,570.00 |
$2,352.00 |
Add
|
| 409-726 |
Type R - 1200mm long |
$3,235.00 |
$2,949.00 |
$2,699.00 |
Add
|
| 409-729 |
Type S - 600mm long |
$1,814.00 |
$1,654.00 |
$1,513.00 |
Add
|
| 409-732 |
Type S - 1000mm long |
$2,818.00 |
$2,570.00 |
$2,352.00 |
Add
|
| 409-735 |
Type S - 1200mm long |
$3,235.00 |
$2,949.00 |
$2,699.00 |
Add
|
| 940-161 |
3/4 in NPT Sealing Assembly |
$210.00 |
$192.00 |
$175.00 |
Add
|
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 409-750 |
Type K - 600mm long |
$492.00 |
$449.00 |
$412.00 |
Add
|
| 409-753 |
Type K - 1000mm long |
$507.00 |
$462.00 |
$422.00 |
Add
|
| 409-756 |
Type K - 1200mm long |
$520.00 |
$475.00 |
$434.00 |
Add
|
| 409-759 |
Type N - 600mm long |
$492.00 |
$449.00 |
$412.00 |
Add
|
| 409-762 |
Type N - 1000mm long |
$507.00 |
$462.00 |
$422.00 |
Add
|
| 409-765 |
Type N - 1200mm long |
$520.00 |
$475.00 |
$434.00 |
Add
|
| 409-768 |
Type R - 600mm long |
$3,529.00 |
$3,217.00 |
$2,944.00 |
Add
|
| 409-771 |
Type R - 1000mm long |
$5,366.00 |
$4,890.00 |
$4,477.00 |
Add
|
| 409-774 |
Type R - 1200mm long |
$6,150.00 |
$5,605.00 |
$5,131.00 |
Add
|
| 409-777 |
Type S - 600mm long |
$3,529.00 |
$3,217.00 |
$2,944.00 |
Add
|
| 409-780 |
Type S - 1000mm long |
$5,366.00 |
$4,890.00 |
$4,477.00 |
Add
|
| 409-783 |
Type S - 1200mm long |
$6,150.00 |
$5,605.00 |
$5,131.00 |
Add
|
| 940-161 |
3/4 in NPT Sealing Assembly |
$210.00 |
$192.00 |
$175.00 |
Add
|
