Industrial Ceramic Thermocouples

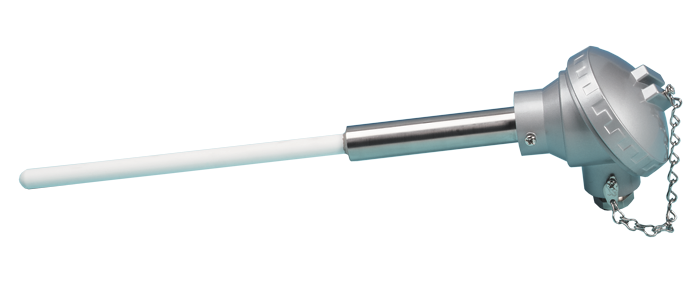

These thermocouples are used for temperature measurement to 1600ºC plus in kilns, furnaces and flues etc. Available in thermocouple types K and J with an impervious aluminous porcelain sheath or type R and S with an impervious recrystallised alumina sheath, they have a 100mm long stainless steel support tube attached to a weatherproof connection head. The thermocouples shown below are normally ex stock although other dimensions are available on request and can be made up within a few days.
- Thermocouple types K, J, R or S
- Ceramic sheath material:
Types K and J, Aluminous Porcelain rated to 1350ºC (K) and 750ºC (J)
Types R and S, Recrystallised Alumina rated to 1600ºC (R & S)
- Ceramic sheath diameters: 12mm or 20mm
- Support tube 21mm OD x 100mm (for 12mm dia ceramic tubes) or 26.7mm OD x 100mm (for 20mm dia ceramic tubes) These lengths are included in total sheath length
- Terminated in an IP67 weatherproof die cast alloy head rated to 135ºC
- 100mm dia Cast Iron flanges are also available
Note: Due to the fluctuating market price of platinum, prices may vary from time to time.
Please contact us for an up to date position.
The following types are available:
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 409-610 |
12mm dia ceramic sheath x 300mm long |
$883.00 |
$805.00 |
$737.00 |
Add
|
| 409-613 |
12mm dia ceramic sheath x 500mm long |
$1,422.00 |
$1,296.00 |
$1,187.00 |
Add
|
| 409-616 |
12mm dia ceramic sheath x 1000mm long |
$2,646.00 |
$2,413.00 |
$2,208.00 |
Add
|
| 409-619 |
20mm dia ceramic sheath x 300mm long |
$908.00 |
$828.00 |
$757.00 |
Add
|
| 409-622 |
20mm dia ceramic sheath x 500mm long |
$1,447.00 |
$1,319.00 |
$1,208.00 |
Add
|
| 409-625 |
20mm dia ceramic sheath x 1000mm long |
$2,671.00 |
$2,436.00 |
$2,230.00 |
Add
|
| 409-503 |
100mm Adjustable Cast Iron Flange for 21.3mm support tube (12mm dia ceramic sheath) |
$44.40 |
$40.50 |
$37.00 |
Add
|
| 409-504 |
100mm Adjustable Cast Iron Flange for 26.7mm support tube (20mm dia ceramic sheath) |
$44.40 |
$40.50 |
$37.00 |
Add
|
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 409-662 |
12mm dia ceramic sheath x 300mm long |
$883.00 |
$805.00 |
$737.00 |
Add
|
| 409-665 |
12mm dia ceramic sheath x 500mm long |
$1,422.00 |
$1,296.00 |
$1,187.00 |
Add
|
| 409-668 |
12mm dia ceramic sheath x 1000mm long |
$2,646.00 |
$2,413.00 |
$2,208.00 |
Add
|
| 409-671 |
20mm dia ceramic sheath x 300mm long |
$908.00 |
$828.00 |
$757.00 |
Add
|
| 409-674 |
20mm dia ceramic sheath x 500mm long |
$1,447.00 |
$1,319.00 |
$1,208.00 |
Add
|
| 409-677 |
20mm dia ceramic sheath x 1000mm long |
$2,671.00 |
$2,436.00 |
$2,230.00 |
Add
|
| 409-503 |
100mm Adjustable Cast Iron Flange for 21.3mm support tube (12mm dia ceramic sheath) |
$44.40 |
$40.50 |
$37.00 |
Add
|
| 409-504 |
100mm Adjustable Cast Iron Flange for 26.7mm support tube (20mm dia ceramic sheath) |
$44.40 |
$40.50 |
$37.00 |
Add
|
