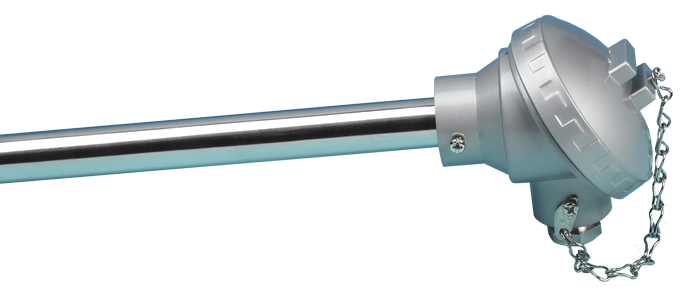

Heavy Duty Industrial Thermocouple
These sensors are available with thick wall protective sheaths in 316L or 310 Stainless Steel, Inconel 600® or Incoloy 800®. Typical temperature measurement applications include: furnaces (blast, carburising etc.), kilns, ovens, boilers, flues, cyanide/galvanising baths and general heat treatment applications. They are available in a variety of diameters and lengths.
Thermocouple types K, J, R or S
Sheath material: 316L Stainless Steel, 310 Stainless Steel, Inconel 600® or Incoloy 800® depending on thermocouple type selected
The maximum operating temperature of these sensors is shown in the order code boxes below
Sheath diameters: 12.7mm (1/2 in), 15.9mm (5/8 in) or 21.3mm (13/16in)
Terminated in an IP67 weatherproof die cast alloy head rated to 135ºC (not included in length)
100mm dia Cast Iron flanges as well as compression fittings are also available Note: Due to the fluctuating market price of platinum, prices may vary from time to time.
The following types are available:
Order Code
Description
1 - 4
5 - 9
10+
Buy
409-382
12.7mm dia x 300mm long
$809.00
$738.00
$676.00
Add
409-385
12.7mm dia x 500mm long
$1,325.00
$1,207.00
$1,105.00
Add
409-388
12.7mm dia x 1000mm long
$2,501.00
$2,279.00
$2,086.00
Add
409-400
21.3mm dia x 300mm long
$834.00
$760.00
$697.00
Add
409-403
21.3mm dia x 500mm long
$1,348.00
$1,229.00
$1,125.00
Add
409-406
21.3mm dia x 1000mm long
$2,524.00
$2,301.00
$2,107.00
Add
409-481
1/2 in BSPT St/Steel comp fitting for 12.7mm sheaths
$47.50
$43.40
$39.70
Add
409-493
3/4 in BSPT St/Steel comp fitting for 21.3mm sheaths
$145.00
$132.00
$121.00
Add
409-501
100mm dia Adjustable Cast Iron Flange for 12.7mm dia
$44.40
$40.50
$37.00
Add
409-503
100mm dia Adjustable Cast Iron Flange for 21.3mm dia
$44.40
$40.50
$37.00
Add
Order Code
Description
1 - 4
5 - 9
10+
Buy
409-432
12.7mm dia x 300mm long
$809.00
$738.00
$676.00
Add
409-435
12.7mm dia x 500mm long
$1,325.00
$1,207.00
$1,105.00
Add
409-438
12.7mm dia x 1000mm long
$2,501.00
$2,279.00
$2,086.00
Add
409-450
21.3mm dia x 300mm long
$834.00
$760.00
$697.00
Add
409-453
21.3mm dia x 500mm long
$1,348.00
$1,229.00
$1,125.00
Add
409-456
21.3mm dia x 1000mm long
$2,524.00
$2,301.00
$2,107.00
Add
409-481
1/2 in BSPT St/Steel comp fitting for 12.7mm sheaths
$47.50
$43.40
$39.70
Add
409-493
3/4 in BSPT St/Steel comp fitting for 21.3mm sheaths
$145.00
$132.00
$121.00
Add
409-501
100mm dia Adjustable Cast Iron Flange for 12.7mm dia
$44.40
$40.50
$37.00
Add
409-503
100mm dia Adjustable Cast Iron Flange for 21.3mm dia
$44.40
$40.50
$37.00
Add
