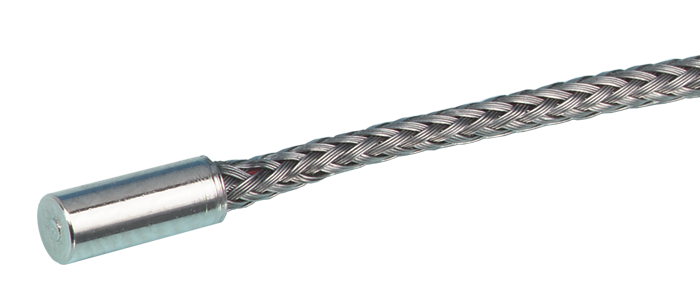

Standard Bearing Thermocouple

Standard Bearing Thermocouple view larger image
These bearing sensors are designed for use in bearing shoes and will give reliable indication as to the bearing condition. This may provide an early warning of oil film breakdown and allow the machine to shutdown and avoid unnecessary damage.
  • Thermocouple types K T or J available
  • Insulated sensing junction
  • Tip dimensions: 3.2mm dia x 8.0mm long or 6.0mm dia x 8mm long
  • Operating range: -25°C to 250°C
  • Extension leads: 2 metres of 7/0.15mm dia PFA insulated cores, stainless steel braided
The following types are available:

Standard Bearing Thermocouple

Order Code Description 1 - 4 5 - 9 10+ Buy
601-500 Type K - 3.2mm dia x 8.0mm long $65.00 $59.00 $55.00 Add
601-506 Type K - 6.0mm dia x 8.0mm long $65.00 $59.00 $55.00 Add
601-512 Type T - 3.2mm dia x 8.0mm long $65.00 $59.00 $55.00 Add
601-518 Type T - 6.0mm dia x 8.0mm long $65.00 $59.00 $55.00 Add
601-524 Type J - 3.2mm dia x 8.0mm long $65.00 $59.00 $55.00 Add
601-530 Type J - 6.0mm dia x 8.0mm long $65.00 $59.00 $55.00 Add
