Silicone Rubber Patch Thermocouple

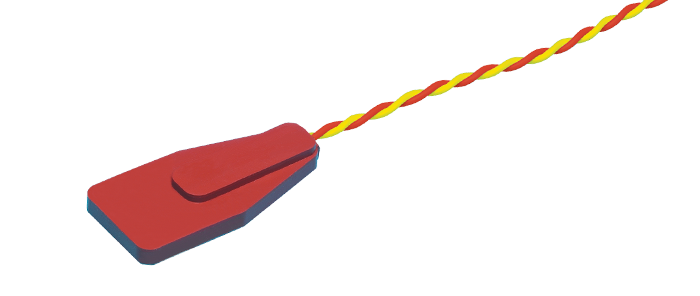

This sensor incorporates a silicon rubber patch with a thermocouple junction embedded within, attached to 2 metre long PFA leads. The patch is self adhesive and when placed in position enables good response times from the flush mounted thermocouple junction.
- Thermocouple types K, T, J and N available
- Rubber Patch dimensions: 30mm x 14 mm x 3.4 mm maximum depth
- Sensor housing: Silicon rubber with self adhesive backing
- Operating range: -50°C to +150°C
- Leads: 2 metres PFA insulated
The following types are available:
