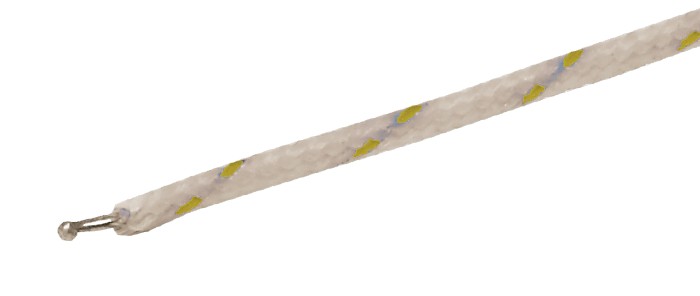

Welded Tip Fibreglass Thermocouple

Welded Tip Fibreglass Thermocouple view larger image
Simple fibreglass insulated thermocouple for fast response using 0.3mm dia conductors. Available with or without a miniature connector attached in 2 or 5 metre lengths. Good for temperatures up to +400ºC.
  • Thermocouple types K, T, J or N available
  • 0.3mm dia solid fibreglass insulated and laid flat pair
  • Lead length: 2 metres or 5 metres
  • Operating range: -10ºC to +400ºC
The following types are available:

Fibreglass T/C Without Miniature Plug

Order Code Description 1 - 19 20 - 50 51 - 100 Buy
601-900 Type K - 2 metres $14.70 $13.40 $12.50 Add
601-903 Type K - 5 metres $26.00 $24.20 $22.00 Add
601-906 Type T - 2 metres $14.70 $13.40 $12.50 Add
601-909 Type T - 5 metres $26.00 $24.20 $22.00 Add
601-912 Type J - 2 metres $14.70 $13.40 $12.50 Add
601-915 Type J - 5 metres $26.00 $24.20 $22.00 Add
601-918 Type N - 2 metres $14.70 $13.40 $12.50 Add
601-921 Type N - 5 metres $26.00 $24.20 $22.00 Add

Fibreglass T/C With Miniature Plug

Order Code Description 1 - 19 20 - 50 51 - 100 Buy
601-941 Type K - 2 metres $21.30 $19.60 $17.80 Add
601-944 Type K - 5 metres $32.60 $29.90 $27.50 Add
601-947 Type T - 2 metres $21.30 $19.60 $17.80 Add
601-950 Type T - 5 metres $32.60 $29.90 $27.50 Add
601-953 Type J - 2 metres $21.30 $19.60 $17.80 Add
601-956 Type J - 5 metres $32.60 $29.90 $27.50 Add
601-959 Type N - 2 metres $21.30 $19.60 $17.80 Add
601-962 Type N - 5 metres $32.60 $29.90 $27.50 Add
