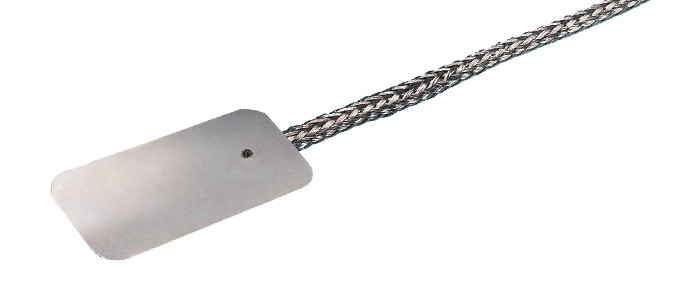

Leaf Thermocouple

This sensor has a fast response thermocouple mounted on a stainless steel shim which allows it to be welded, soldered or placed under banding on a variety of applications including nozzle or band heaters. It is supplied with 2 metre leads with either plain tails or miniature plug termination.

Thermocouple types K, T, J or N, grounded junction
Stainless steel leaf dimensions: 13mm x 25mm
Leads: 2 metres fibreglass or alternatively stainless steel braided fibreglass
Operating range -30°C to +350°C

The following types are available:

Leaf Thermocouple With Leads
Leaf Thermocouple With Leads and Miniature Plug

Leaf Thermocouple With Leads

Order Code	Description	1 - 9	10 - 24	25+	Buy
601-340	Type K - Fibreglass Leads	$37.20	$32.20	$29.00	Add
601-343	Type K - Stainless Steel/Fibreglass Leads	$41.10	$35.40	$32.00	Add
601-346	Type T - Fibreglass Leads	$37.20	$32.20	$29.00	Add
601-349	Type T - Stainless Steel/Fibreglass Leads	$41.10	$35.40	$32.00	Add
601-352	Type J - Fibreglass Leads	$37.20	$32.20	$29.00	Add
601-355	Type J - Stainless Steel/Fibreglass Leads	$41.10	$35.40	$32.00	Add
601-358	Type N - Fibreglass Leads	$37.20	$32.20	$29.00	Add
601-361	Type N - Stainless Steel/Fibreglass Leads	$41.10	$35.40	$32.00	Add

Leaf Thermocouple With Leads and Miniature Plug

Order Code	Description	1 - 9	10 - 24	25+	Buy
601-370	Type K - Fibreglass Leads	$49.70	$42.80	$38.80	Add
601-373	Type K - Stainless Steel/Fibreglass Leads	$54.00	$45.80	$41.60	Add
601-376	Type T - Fibreglass Leads	$49.70	$42.80	$38.80	Add
601-379	Type T - Stainless Steel/Fibreglass Leads	$54.00	$45.80	$41.60	Add
601-382	Type J - Fibreglass Leads	$49.70	$42.80	$38.80	Add
601-385	Type J - Stainless Steel/Fibreglass Leads	$54.00	$45.80	$41.60	Add
601-388	Type N - Fibreglass Leads	$49.70	$42.80	$38.80	Add
601-391	Type N - Stainless Steel/Fibreglass Leads	$54.00	$45.80	$41.60	Add
