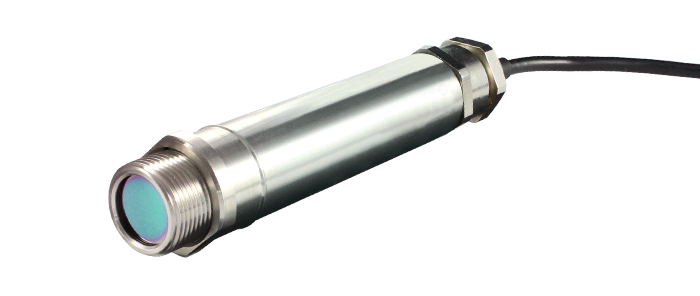

Infrared Thermometer
This infrared thermometer is ideal for a wide variety of applications where contact temperature measurement is not possible. Offered with either 2:1, 15:1 or 30:1 optical resolution depending on model, they are supplied with a 2 wire 4-20mA output over a range of 0 to 250°C. The sensor is compatible with any instrumentation which has a 4-20mA input. All models are available with a water cooled jacket and air purge collar. An adjustable mounting bracket is also available.
- Temperature range: 0°C to 250°C
- Output: 4-20mA
- Accuracy: ±1% of reading or ±1°C, whichever is greater
- Response time: 240mSec (90% response)
- Repeatability: ±0.5% of reading or ±0.5°C, whichever is greater
- Resolution (Temperature): 0.25%
- Emissivity: 0.95 (fixed)
- Optical Resolution: Either 2:1, 15:1 or 30:1 depending on model selected
- Power supply required: 24 V DC to drive loop
- Dimensions: 18mm diameter x 103mm long stainless steel housing
- Available with optional water cooled jacket and air purge collar
- Rated to IP65
- Thread mounting: M16x1mm
- Supplied complete with 1 metre of cable
The following types are available:
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 757-500 |
Infrared Thermometer with 2:1 optical resolution |
$390.00 |
$357.00 |
$326.00 |
Add
|
| 757-520 |
Infrared Thermometer with 2:1 optical resolution c/w water cooled jacket and air purge collar |
$1,219.00 |
$1,111.00 |
$1,017.00 |
Add
|
| 757-540 |
Infrared Thermometer with 15:1 optical resolution |
$822.00 |
$749.00 |
$685.00 |
Add
|
| 757-545 |
Infrared Thermometer with 15:1 optical resolution c/w water cooled jacket and air purge collar |
$1,647.00 |
$1,503.00 |
$1,375.00 |
Add
|
| 757-580 |
Infrared Thermometer with 30:1 optical resolution |
$1,066.00 |
$973.00 |
$890.00 |
Add
|
| 757-590 |
Infrared Thermometer with 30:1 optical resolution c/w water cooled jacket and air purge collar |
$1,895.00 |
$1,727.00 |
$1,580.00 |
Add
|
| 757-510 |
Adjustable Mounting Bracket |
$73.00 |
$66.00 |
$60.00 |
Add
|
| 757-132 |
Calibration - 1 sensor at 1 point |
$179.00 |
$164.00 |
$150.00 |
Add
|
| 757-133 |
Calibration - 1 sensor at 2 points |
$249.00 |
$227.00 |
$209.00 |
Add
|
| 757-134 |
Calibration - 1 sensor at 3 points |
$313.00 |
$284.00 |
$261.00 |
Add
|
