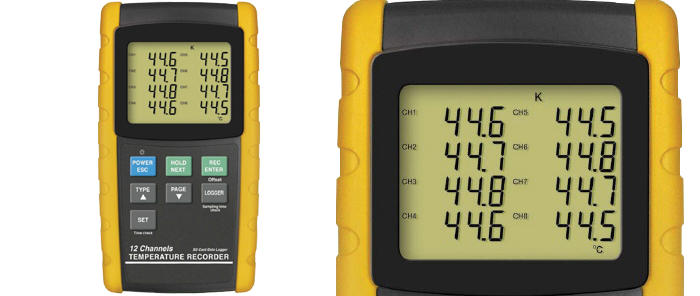

Hand Held 12 Channel Multi-Thermocouple Datalogger
This 12 channel hand held datalogging indicator will accept Types K T J E R or S thermocouple sensors. It features a clear backlit LCD display which can show up to 8 channels at the same time. The instrument can save logging details with the exact date recorded; the results can then be transferred to a PC using an SD card (4GB SD included), which can then be shown in an Excel spreadsheet (no software or cable required). Optional Windows software is available and through the use of the optional RS232 to USB converter and cable, results can be monitored and recorded in real time, providing the unit is plugged into a PC during recording. Sampling rate can be set from 1 second to 1 hour, allowing the user to leave the unit unattended for longer periods if necessary. The unit can also be set for auto switch-off or manual to save battery life. To extend the battery life, a power adaptor can be purchased separately. To protect the unit, a rubber protective case is supplied to allow the user to work in harsh environments.
- Up to 12 channels can be logged at the same time
- Selectable for thermocouple types K T J E R or S connected via a miniature flat pin plug
- °C/°F selectable
- Accuracy:
Type K: +/-0.4% + 1°C (-100 to -50.1°C), +/-0.4% + 0.5°C (-50 to +999.9°C),
+/-0.4% + 1°C (1000 to 1300°C)
Type T: +/- 0.4% + 1°C (-100 to -50.1°C), +/- 0.4% + 0.5°C (-50.1 to +400°C)
Type J: +/- 0.4% + 1°C (-100 to -50.1°C), +/- 0.4% + 0.5°C (-50.1 to 750°C)
Type E: +/-0.4% + 1°C (-100 to -50.1°C), +/-0.4% + 0.5°C (-50.1 to 900°C)
Type R: +/-0.4% + 0.5°C (0 to 600°C), 0.4% + 1°C (601 to
1700°C)
Type S: +/-0.4% + 0.5°C (0 to 600°C), 0.4% + 1°C (601
to 1500°C)
- Resolution: 0.1°C up to 999.9°C, 1.0°C above 1000°C
- Sampling Time: 1 second to 3600 seconds (1 hour)
- Hand held with moulded rubber holster
- Supplied with carry case and 4GB SD card (up to 16GB can be inserted into the unit)
- Power supply: 8 AA batteries (supplied separately)
- Optional power adaptor, software and USB to RS232 cable are available
The following types are available:
