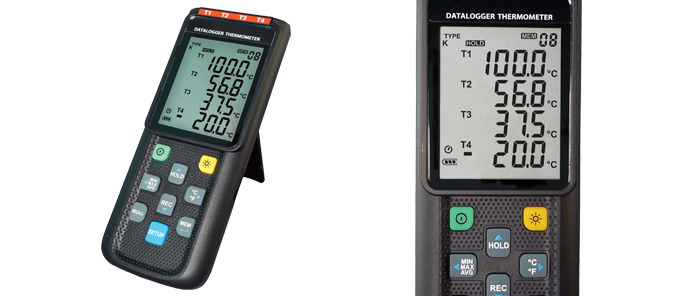

Hand Held Four Channel Multi Thermocouple Bluetooth Datalogger



This four channel hand held datalogging indicator will accept Types K T J N R S or E thermocouple sensors and features a clear a clear backlit LCD display and tilt stand design. The instrument can log up to 32000 readings per channel and via a USB output and supplied Windows® software or Bluetooth adaptor (dependant on unit selected), measurements can be made in the field and then downloaded simultaneously or later to a PC. High and Low alarms are configurable from the PC as well as being able to export the data in a variety of formats. It is possible to log each channel or the differential temperature between two channels. The interval programme on the indicator incorporating a real time clock allows unsupervised measurements in variable increments. Other features include max/min/avg display and data hold function keys, timer, a °C/°F/K transfer key and an ergonomically designed keypad with non slip function keys.
  • Multi channel input. Logging of either measurement or a differential measurement possible
  • Bluetooth connectivity only available with Bluetooth adaptor
  • Up to 32000 readings per channel
  • Windows® software supplied
  • Selectable for thermocouple types K T J N R S or E, connected via a miniature flat pin plug
  • °C/°F/K selectable
  • Accuracy:
    K, T, J, N, E: +/- 0.1% of reading + 0.7ºC/1.4ºF (below -100°C 0.5% of reading + 0.7°C)
    R & S: +/- 0.2% of reading + 1.4ºC/2.5ºF
  • Resolution: 0.1°C/°F/K
  • Sampling Time: Selectable, from 1 second to 23 hours, 59 minutes, 59 seconds.
  • Supplied with USB cable and Windows® software
  • Power supply: 4 x AAA batteries
  • Battery Life: 120hrs
The following types are available:

Hand Held Four Channel Multi Thermocouple Datalogger

Order Code Description 1 - 4 5 - 9 10+ Buy
753-652 Four Channel Datalogger Indicator – No Bluetooth Connectivity $498.00 $454.00 $416.00 Add
753-653 Four Channel Datalogger Indicator with Bluetooth Adaptor $590.00 $539.00 $493.00 Add
898-567 Spare pack of 4 AAA Batteries $13.70 $12.60 $11.60 Add
