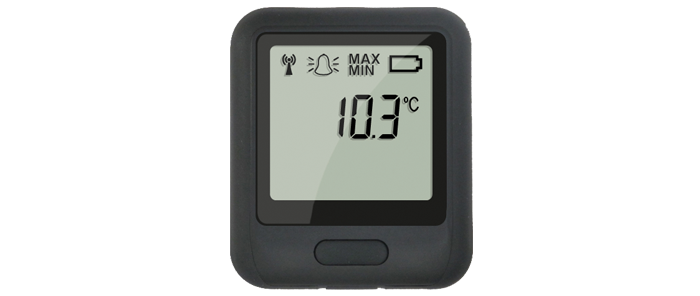

WiFi Temperature Data Logger
This data logger
measures the
temperature of the
environment in which the
probe is situated. Data is
then transmitted
wirelessly via a WiFi
network to a PC and
viewed via the graphing
tool or it can be exported
to Excel®. During
configuration the sensor
will search for an existing wireless network
whilst physically connected to the PC. It
can then be placed anywhere within the
range of the network. If the sensor
temporarily loses connectivity with the
network, it will log readings until it is able
to communicate again with the PC
application (max 120 days at 10 second
sample interval). The range of the sensor can be increased by using WiFi extenders. When
configured using typical sampling periods (e.g. once every 60 seconds) the sensor will
operate for over one year. The battery can then be recharged via a PC or USB +5V wall
adapter using the USB lead provided. The software installed on the PC will allow set-up, data
logging and data review. Set-up features will include sensor name, °C/°F, sample rate, and
high/low alarms. Two versions are available: one with an internal temperature sensor and the
other with an external temperature probe. The probe (thermistor) can be used in a wide range
of temperature applications, such as in manufacturing processes, cold storage, hot storage
etc. This logger is a low powered battery device.
- WiFi capability and integrated display
- Wireless connectivity to PC via WiFi
- Measurement range -20°C to +60°C
- Accuracy: ±0.5ºC (-10°C to +50°C)
- Main unit IP55
- Rechargeable internal lithium polymer battery
- Data logger set-ups: Logger Name, °C/°F, Logging Rate (10s, 1m, 5m, 30m, 1hr,
6hr, 12hr), Upload Frequency, High and Low Alarms, Start Date & Start Time
The following types are available:
