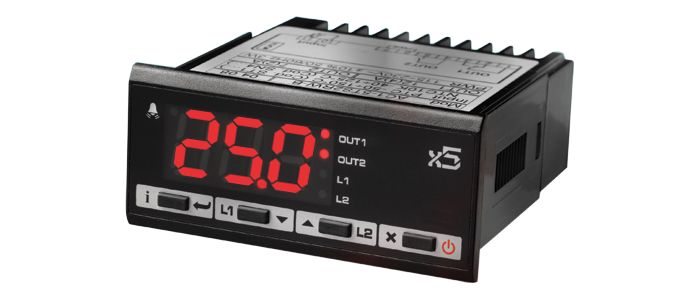

Panel Mount Thermostat for use with NTC10K Sensor
This mains powered panel mount thermostat measures 35mm x 77mm. It is available either as a single stage or dual stage thermostat and is useful in a number of applications such as
refrigeration, heating plants, ovens and bakery equipment. Programming of spans etc. is done from the keypads on the front fascia, which can if necessary be locked out whilst in normal operation. They have a bright easy to read LED indication of the measured value. The thermostat is for use with a NTC thermistor suitable for measuring temperatures from -40ºC to +125ºC.
- Resolution: 1ºC (-40°C to 125°C) except ±0.1°C (-19.9°C to 99.9°C)
- Accuracy 1°C (-40°C to 125°C) except ±0.3ºC (-19.9°C to 99.9°C)
- Operating range: -40ºC to +125ºC
- Output: One or two relays
- Display: 3 digit 14mm high LED
- For use with NTC probe (10000 ohms at 25ºC). Choose from 2, 3, 5 or 10 metre
long versions of NTC thermistor shown on this page
- Overall size: 35(H) x 77(W) x 77mm(D)
- Panel cutout: 29mm(H) x 71mm(W)
- Protection: Front panel is IP54 when used with supplied gasket
- Supply voltage: 12V AC/DC or 115/230V AC (Transformer available for 24V
supply)
The following types are available:
