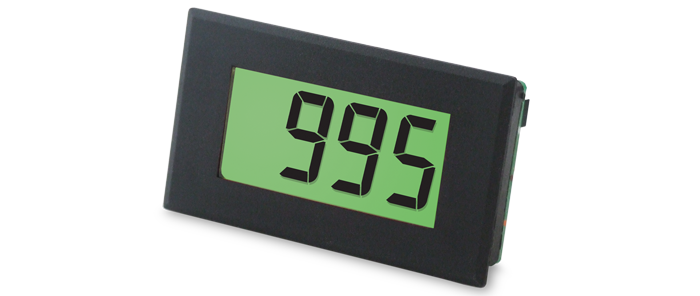

Slimline LCD Thermocouple Indicator
This slimline temperature indicator is compatible with thermocouple Types K, T and J and measures over a range of -200 to +1300°C (-328 to +1999°F) when using an appropriate thermocouple. The current value and the maximum and minimum values since power-on are recorded, which can be recalled and displayed by using an external push button connected to the meter. Thermocouple Type and °C / °F display can be easily selected. The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the low profile bezel, window and clips provided. Back lighting is fitted for use in poor lighting conditions.
- Fascia: 76mm x 44mm x 3mm thick
- Inputs: Thermocouple Types K, T and J
- 19mm (0.75”) digit height
- Displays current, highest and lowest readings
- Cold junction compensation
- Screw terminal connections
- LED back lighting
- Calibration can be performed easily using two potentiometers located on the rear of the meter
Specifications:
Accuracy: ±1°C (2°F)
Measurement Range:-
Type K: -200 to +1300°C
Type T: -200 to +350°C
Type J: -130 to +900°C Supply Voltage: 7.5 to 30V dc
