Modular Temperature/Process I/O Modbus System

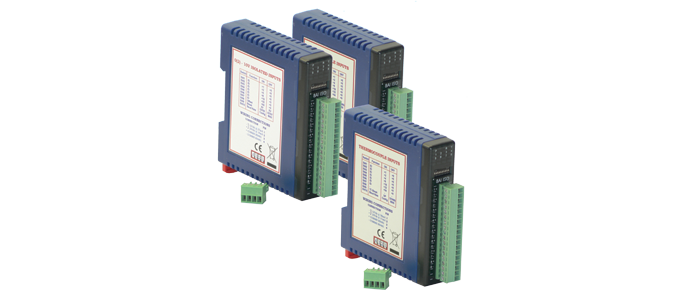

Modular Temperature/Process I/O Modbus System view larger image
This modular system provides a low cost solution for temperature/process data acquisition and monitoring. The system modules can be located near to the field mounted sensors, hence reducing installation and cabling costs. Each module is DIN rail mounted and fitted with its own Modbus RS485 link which enables simple integration with most PLCs, HMIs and SCADA software.
  • Simple to use and commission
  • Thermocouple, RTD or voltage/current input
  • Digital input with counter
  • Analogue voltage/current outputs
  • Digital or relay outputs
  • 12-24V DC supply required
  • Dimensions: 109mm x 22.6mm x 97.5mm (Height x width x depth)
  • Optional autoconfiguring supervisory programme available
  • 2 year warranty
The following types are available:

Modbus Temperature and Process I/O Modules

Order Code Description 1 - 4 5 - 9 10+ Buy
693-100 6 PRT inputs (100 ohms @ 0°C) / (1000 ohms @ 0°C) $738.00 $672.00 $616.00 Add
693-114 8 thermocouple inputs $748.00 $681.00 $624.00 Add
693-118 8 thermocouple isolated inputs $1,023.00 $934.00 $853.00 Add
693-123 8 analogue inputs (current) $651.00 $594.00 $544.00 Add
693-137 8 analogue inputs (voltage) $651.00 $594.00 $544.00 Add
693-148 16 channel digital inputs with 4 counters $480.00 $437.00 $400.00 Add
693-152 8 analogue outputs (current) $681.00 $622.00 $569.00 Add
693-156 8 analogue outputs (voltage) $681.00 $622.00 $569.00 Add
693-160 16 digital outputs $480.00 $437.00 $400.00 Add
693-164 4 relay outputs $463.00 $423.00 $386.00 Add
748-200 DIN rail mounting 24 V DC 500 mA power supply $110.00 $100.00 $93.00 Add
690-105 USB / RS485 communication converter $602.00 $549.00 $502.00 Add
